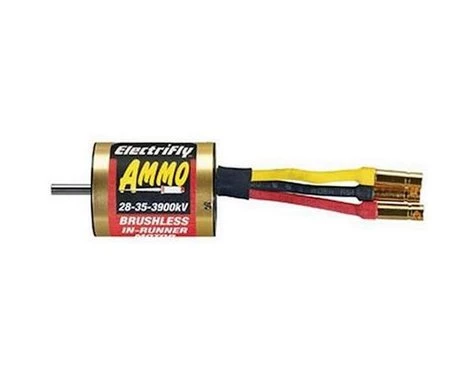

Great Planes Ammo 28-35 In-Runner Brushless Motor (3900kV)

The Great Planes Ammo 28-35 In-Runner Brushless Motor offers an incredible power-to-weight advantage and almost twice the efficiency of Brushed motors. The Ammo line of brushless motors feature “Rare Earth” Neodymium magnets, gold plated connectors and double sealed bearings for long lasting high efficiency. Package includes one Ammo motor.

Features:

• Brushless In-Runner design
• Incredible power-to-weight advantage
• Ideal for direct or gear drive use
• Up to 89% efficient and virtually maintenance-free; no brushes to wear out
• Uses “rare earth” Neodymium magnets for high torque and unmatched heat resistance
• Pre-installed gold plated connectors for plug and play operation
• Double sealed bearings

Specifications:
Voltage: 7.4-11.1V (2S-3S)
kV (RPM/Volts): 3900
Poles: 2
Connector Type: 3.5mm Bullet
Length: 1.378″ (35mm)
Diameter: 1.1″ (28mm)
Shaft Length: 0.591″ (15mm)
Shaft Diameter: 0.126″ (3mm)
Weight: 3.3oz (94g)
Prop Range: 10x7e-14x7e

This product was added to our catalog on September 6, 2019
