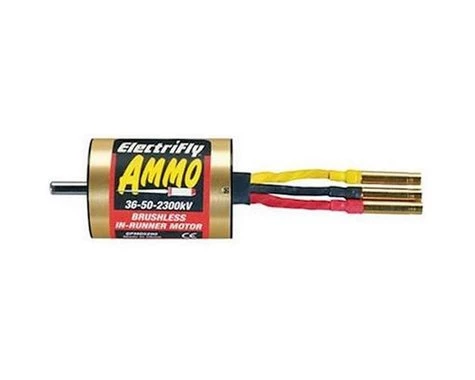

Great Planes Ammo 36-50 In-Runner Brushless Motor (2300kV)

The Great Planes Ammo 36-50 In-Runner Brushless Motor offers an incredible power-to-weight advantage and almost twice the efficiency of Brushed motors. The Ammo line of brushless motors feature “Rare Earth” Neodymium magnets, gold plated connectors and double sealed bearings for long lasting high efficiency. Package includes one Ammo motor.

Features:

• Brushless In-Runner design
• Incredible power-to-weight advantage
• Ideal for direct or gear drive use
• Up to 89% efficient and virtually maintenance-free; no brushes to wear out
• Uses “rare earth” Neodymium magnets for high torque and unmatched heat resistance
• Pre-installed gold plated connectors for plug and play operation
• Double sealed bearings

Specifications:
Voltage: 14.8-18.5V (4S-5S)
kV (RPM/Volts): 2300
Poles: 2
Max Burst Current: 100A
Connector Type: 4mm Bullet
Length: 1.97″ (50mm)
Diameter: 1.42″ (36mm)
Shaft Length: 0.591″ (15mm)
Shaft Diameter: 0.197″ (5mm)
Weight: 8.6oz (243g)
Prop Range: 10x7e-13x8e
